Introduction
As you use Canvas Apps more your less likely to use standard forms which means you won’t be able to use simple functions like ‘SubmitForm(FormName)’ and more likely to adopt functions like ‘Patch’. This can be quite daunting at first but have a lot of advantagesBenefits of Patch Vs Submit Form
In our SharePoint list we have created the below columns and will show you how to patch each one of them:- Text
- Choice
- Multi-Choice
- Date
- Person
- Number
- Yes/No
- Hyperlink
- Image
- LookUp
Patch New And Update Record
When using SubmitForm function it doesn’t matter if you are adding a new record or updating an existing record the same function applies. When using the Patch function you need to define if you are updating an existing record or adding a new record.
Patch New Record
To add a new record the patch function must contain certain elements:
- Function Name
- Record/ Expression to be patched
- Fields to be patched
Below is a simple example patching Order Name and Order ID to the Orders SharePoint List
Patch(Orders,Defaults(Orders),
{
Order ID:Value(TxtOrderID.Text),
'Order Name':TxtOrderName.Text,
}
In this example we are:
- Initialising the ‘Patch’ Function
- Selecting the Data source to be patched
- Defining a new Record using ‘(Defaults)’
- Setting data source where the new record needs to be patched to
- inputting the columns that will be patched
Simple Columns
Some columns are easier to patch than others, below are examples of each of these:The Result
Patch(Orders,Defaults(Orders),
{
Text:TextField.Text,
Choice:ChoiceField.Selected,
'Multi Choice':MultiChoiceField.SelectedItems,
Date:DateField.SelectedDate,
Number:Value(NumberField.Text),
'Yes/No':YesNoField.Value,
Hyperlink:HyperlinkField.Text,
Image:ImageField.Image,
Person:PersonField.Selected
})
Patch Complicated Column Types
We have shown how to patch column that are generated directly from the data source but what if you you didn’t have that data or patching manual values or from a different data source.
Choice Field
Lets say we have a combobox with the values ‘Apple’, ‘Pair’ and Orange as below we can put this into an array within the items properties on the combo box like below:

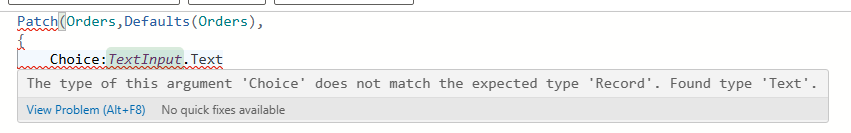

and this would work in the patch function, but lets say we didn’t want to patch from a combo box but from a text field.
With a SharePoint list we can patch manual choice values:
Patch(Orders,Defaults(Orders),
{
Choice:{Value:TextInput.Text}
})
Date Field

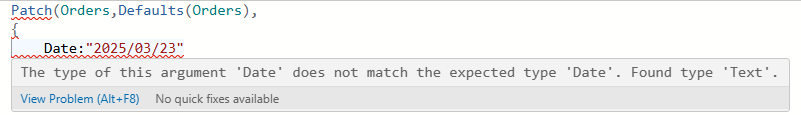

For date fields most the time we would be patching from a date control, but what if we wanted to manually input a date? Even if we format it to ISO8601 this still wouldn’t work as it expects a ‘Date’ value not a ‘Text’ value
To do this we can pass it through as a date value
Patch(Orders,Defaults(Orders),
{
Date:DateValue("2025/03/23")
})
To add time we need to also pass through a time value:
Patch(
Orders,
Defaults(Orders),
{
Date:DateValue("2025/03/23") + Time(21, 30, 0)
}
);
Person Column
Probably one of the most complex column types in SharePoint is the Person column type. The User/ Person must first exist in Entra for this to work however you can manually patch a person field.

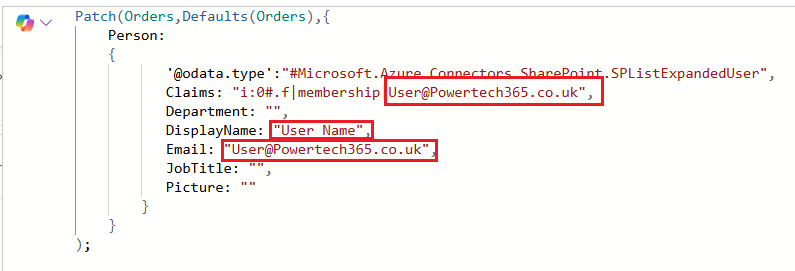

To manually patch a person you need to pass some parameters but you only really need the email address to patch.

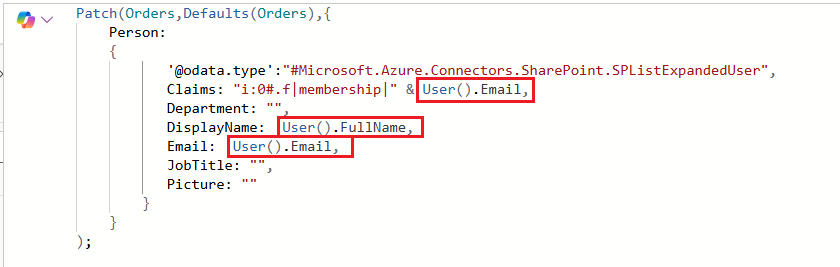

How about patching the current logged in user? For this we can use the ‘User()’ function:
Patch(Orders,Defaults(Orders),{
Person:
{
'@odata.type':"#Microsoft.Azure.Connectors.SharePoint.SPListExpandedUser",
Claims: "i:0#.f|membership|" & User().Email,
Department: "",
DisplayName: User().FullName,
Email: User().Email,
JobTitle: "",
Picture: ""
}
}
);
