Overview
Parent-child relationships in Dataverse define how operations on parent records affect related child records through cascade behaviour settings. By configuring cascade rules for delete, assign, share, merge, and reparent operations, you control whether actions propagate to children, are restricted, or leave children orphaned. Understanding these behaviours is essential for maintaining data integrity and preventing unintended record deletions in production environments.
Prerequisites
- Advanced Dataverse table design experience
- Understanding of relationship types and lookup fields
- Familiarity with data modelling concepts
- Experience with model-driven app configuration
Why Parent-Child Relationships Matter
Parent-child relationships (also referred to as Microsoft Dataverse as a whole) are a building block for structuring data, especially when dealing with complex use cases where one entity relates to many child records and these child records should inherit actions from a parent. Understanding when and how to apply parental vs referential behavior is critical to building resilient and sustainable data architecture.
Common parent-child scenarios:
- Projects with related Tasks (deleting project deletes all tasks)
- Accounts with Contacts (deleting account can orphan or delete contacts)
- Orders with Order Lines (order deletion must cascade to line items)
- Cases with Activities (case closure affects related activities)
- Custom entities with child records requiring inheritance
Why cascade behaviour matters:
- Data integrity – Prevent orphaned records without parent references
- User experience – Clear understanding of deletion consequences
- Business logic – Enforce rules like "cannot delete customer with active orders"
- Performance – Cascade operations handle bulk deletions efficiently
- Compliance – Meet data retention and deletion requirements
Operations affected by cascade behaviour:
- Delete – What happens to child records when parent is deleted
- Assign – Whether child records follow parent ownership changes
- Share – If sharing parent also shares children
- Unshare – Removing parent access affects child access
- Merge – Combining duplicate parent records and their children
- Reparent – Changing lookup value propagates to children

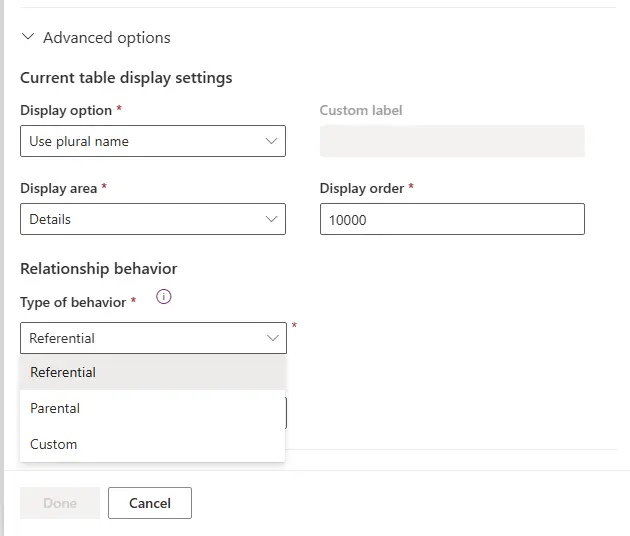

Relationship Behaviour Types
The three primary behaviour types:
- Parental – Child records inherit actions from parent (tight coupling)
- Referential – Child records remain independent (loose coupling)
- Referential, Restrict Delete – Prevent parent deletion if children exist
- Custom – Configure each cascade action individually
Parent-child relationships (also referred to as 1 N relationships) work by having the child table have a lookup to the parent table, and the actions that the parent undergoes are then cascaded down to the child or not. There are four relationship behaviours to choose from (with one being deprecated so really three):
- Parental (provides Cascade All behavior automatically). The way this works relates to you configuring
- Referential (custom configuration where you can select various actions, more flexible)
- Referential, Restrict Delete (default, prevents parent deletion if children exist)
- Custom (deprecated but still visible in older relationships)
How each behavior works:
| Behaviour Type | Delete Parent | Assign Parent | Share Parent |
|---|---|---|---|
| Parental | Cascade - Delete children | Cascade - Assign children | Cascade - Share children |
| Referential | Remove Link - Children orphaned | No Cascade | No Cascade |
| Referential, Restrict Delete | Restrict - Cannot delete | No Cascade | No Cascade |
| Custom | Configurable per action | Configurable per action | Configurable per action |
Decision framework for choosing behaviour:
- Use Parental when: Children have no meaning without parent (Order Lines without Order, Tasks without Project)
- Use Referential when: Children can exist independently (Contacts can exist without Account)
- Use Restrict Delete when: Business rules prevent deletion of parents with children (Cannot delete Customer with active Orders)
- Use Custom when: Need granular control over each cascade operation individually
Configuring Cascade All Relationships
The parental relationship is appropriate when you want the children of a parent record to inherit actions from the parent. The way this would be useful in a real-world scenario is when we want the child record to stay linked to the parent always, so when things like share, assign, delete, merge and so on they will cascade to the children.
When to use parental behaviour:
- Children records have no independent business value without parent
- Deleting parent should automatically delete all children
- Reassigning parent should reassign all children to same owner
- Sharing parent should grant access to all children
Example scenarios requiring parental behaviour:
- Invoice → Invoice Lines (lines meaningless without invoice)
- Project → Tasks (tasks exist only within project context)
- Campaign → Campaign Activities (activities are part of campaign)
- Quote → Quote Products (products are quote components)
Configuring parental relationship:
Parental behaviour cascade actions:
| Action | Cascade Behaviour | Result |
|---|---|---|
| Delete | Cascade All | Children deleted when parent deleted |
| Assign | Cascade All | Children reassigned to new owner |
| Share | Cascade All | Children shared with same users |
| Unshare | Cascade All | Access removed from children |
| Merge | Cascade All | Children linked to merged record |
| Reparent | Cascade All | Ownership follows lookup changes |
Over the relationship you see to the movement parent records:
User experience with parental relationships:
- Deletion warnings show total child records that will be deleted
- Assignment operations update all children automatically
- Shared parent provides access to entire hierarchy
- No orphaned records possible with this configuration
Independent Child Record Configuration
Referential behaviour should be used in areas where you have parent and child records but you want the parent record to stay on whether or not the child exists (like Account and Contact for example). You likely want configuration where child records remain when the parent is deleted however, you want the ownership to propagate down when assigning.
When to use referential behaviour:
- Child records have independent business value
- Children should survive parent deletion (become orphaned)
- Manual control over child record lifecycle required
- Flexible ownership and sharing models needed
Configuring referential relationship:
1. In table designer, open the relationship
2. Select Type of behaviour: Referential
3. Configure each cascade action individually:
- Delete: Remove Link (orphan children)
- Assign: Cascade All or No Cascade
- Share: Cascade All or No Cascade
- Merge: Cascade All or No Cascade
4. Save and publishExample: Account-Contact referential relationship
- Delete Account: Remove Link – Contacts remain but Account lookup becomes null
- Assign Account: Cascade All – Contact ownership follows Account owner
- Share Account: Cascade All – Shared Account provides access to Contacts
- Merge Accounts: Cascade All – Contacts link to merged Account record
Available cascade options for referential behaviour:
| Cascade Option | Effect on Children | Common Use |
|---|---|---|
| Cascade All | Action propagates to children | Assign, Share operations |
| Cascade Active | Only affects active children | Status-aware operations |
| Cascade User-Owned | Only user-owned children affected | Organisation-owned tables |
| No Cascade | Children unaffected | Independent child management |
| Remove Link | Lookup cleared, children orphaned | Delete operations |
A strong example of this is the relationship between Account and Contact records. It is fairly common here to remove the link between the contact and account when deleting an account (as you still want to retain the contact). However the ownership propagates for things like share and reassign.
Preventing Parent Deletion with Children
Referential Restrict Delete is used when we want to prevent deletion of records which will still reference other records or child records will still exist. This behavior helps enforce data rules (like "We do not want customers which still have active orders being deleted from the system").
When to use restrict delete:
- Business rules prohibit deleting parents with children
- Data integrity requires explicit child cleanup before parent removal
- Regulatory requirements prevent cascade deletions
- Users must acknowledge child records before deletion
Common restrict delete scenarios:
- Cannot delete Customer with active Orders (financial integrity)
- Cannot delete Product Category with Products (catalogue structure)
- Cannot delete Department with Employees (organisational integrity)
- Cannot delete Account with open Cases (support continuity)
Configuring restrict delete:
1. Create or edit relationship
2. Type of behaviour: Referential, Restrict Delete
3. Delete cascade action automatically set to Restrict
4. Configure other cascade actions as needed:
- Assign: Typically Cascade All
- Share: Typically Cascade All
5. Save and publishTo give an example, if we had a parent that should be prevented from deletion if it still has child records, we could configure the cascade behavior to be "Restrict Delete". This makes sure the child record is deleted first and this ensures that nothing is kept hanging without a parent or related entity attached. The idea here is to manually handle those records beforehand before deleting the parent record.
User experience with restrict delete:
- Deletion attempt shows error: "Cannot delete record with related records"
- Users must manually delete or reassign children first
- Provides explicit control over deletion process
- Prevents accidental data loss from cascade deletes
Implementing restrict delete workflow:
Clicks delete button in model-driven app or executes delete API call.
System queries child table for records with parent lookup populated.
Error message displayed, parent record remains unchanged.
Manually deletes children, reassigns to different parent, or cancels deletion.
Once all children removed, parent deletion succeeds.

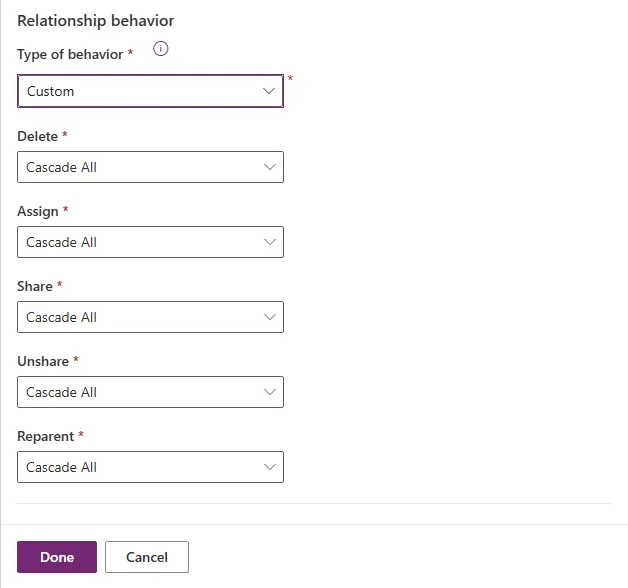

Granular Cascade Control
Custom behavior lets you specify exactly how each type of cascade action (delete, merge, share, assign etc.) should behave independently. This allows you the most control to refine the exact behavior you want for your model. As an example you might want restrict delete behavior but you want the parent to have cascade sharing enabled.
When to use custom behaviour:
- Need different cascade rules for different operations
- Restrict delete required but cascade assign/share needed
- Complex business rules requiring granular control
- Mix of cascade and non-cascade operations on same relationship
Custom behaviour configuration options:
Example custom configuration:
| Action | Cascade Setting | Rationale |
|---|---|---|
| Delete | Restrict | Prevent accidental data loss, require explicit cleanup |
| Assign | Cascade All | Children should follow parent ownership for security |
| Share | Cascade All | Sharing parent grants access to entire hierarchy |
| Unshare | Cascade All | Removing parent access removes child access |
| Merge | Cascade All | Children link to surviving merged record |
| Reparent | No Cascade | Changing lookup does not affect ownership |
By default the standard is two parent related options: Cascade Configuration (example Cascade behavior) and Cascade Configuration (example Cascade behavior).
Common custom patterns:
- Protect but cascade: Restrict Delete + Cascade Assign/Share (safeguard data, maintain security)
- Orphan but follow owner: Remove Link + Cascade Assign (independent records, consistent ownership)
- Selective cascade: Cascade Active only for status-dependent operations
- User-owned only: Cascade User-Owned for organisation-owned parent tables
A good rule for deciding which you should use:
- Is a parent Record on here, a primary or more a lookup which is referenced to filter or relate
- If your Delete action is set to delete cascade, you should cascade everything unless you have a business reason otherwise as we do not need to maintain consistency for deletes
- Be aware of how it scales and related cascade configuration items
- If Restrict is being used, you should Cascade the Assignment and shares as this behavior is aligned together with cascade for the rest
- Have your Record have cascade all unless you particularly have the scenario where you do not want
- Save and publish your custom configurations
Understanding Individual Cascade Settings
Each cascade action in a custom relationship can be configured with different propagation rules. Understanding these options helps you build precisely the data behaviour your business requires.
All available cascade options:
| Option | What It Does | When to Use |
|---|---|---|
| Cascade All | Action propagates to all child records regardless of status or ownership | Default for most parental relationships and ownership operations |
| Cascade Active | Only affects active child records (Status = Active) | Preserve inactive historical records during parent operations |
| Cascade User-Owned | Only affects children owned by users (not organisation-owned) | Organisation-owned parent tables with mixed child ownership |
| Cascade None (No Cascade) | Children completely unaffected by parent operation | Independent child lifecycle management required |
| Remove Link | Clears parent lookup field, orphans children | Delete operations where children should survive independently |
| Restrict | Prevents parent operation if any children exist | Enforce explicit child handling before parent changes |
Cascade All vs Cascade Active comparison:
Scenario: Delete Account with 5 Contacts (3 Active, 2 Inactive)
Cascade All:
- All 5 Contacts deleted with Account
- No orphaned records remain
Cascade Active:
- Only 3 Active Contacts deleted
- 2 Inactive Contacts remain with null Account lookup
- Preserves historical data while cleaning active recordsWhen to use Cascade Active:
- Maintain audit trail of inactive historical records
- Compliance requirements to retain deactivated data
- Soft delete patterns where inactive = deleted
- Preserve completed activities when deleting parent cases
When to use Cascade User-Owned:
- System entities like Queue or Team as parent tables
- Mixed ownership models (some children user-owned, some org-owned)
- Service-level operations that should not affect user data
- Plugin or system-created children that should remain independent
Decision tree for cascade configuration:
- Is this a true parent-child relationship? → Parental (Cascade All)
- Should deletion be prevented if children exist? → Restrict Delete
- Should children survive parent deletion? → Remove Link
- Should ownership/sharing propagate? → Cascade All (assign/share)
- Need to preserve inactive records? → Cascade Active
The Microsoft Dataverse relationship documentation provides comprehensive information on relationship types, cascade behaviour options, and advanced configuration patterns for building robust data models with proper referential integrity.
